Delock 2 RCA -> Toslink Standard Coaxial A/D konverter fekete

Description

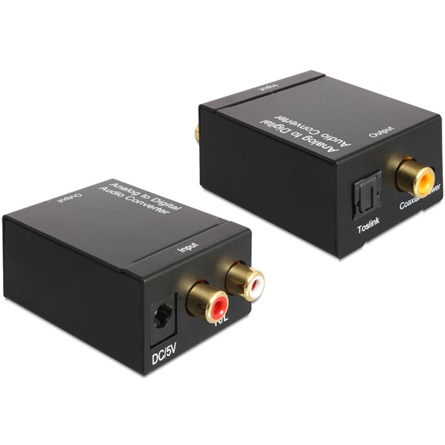

The Delock audio converter changes your analogue stereo signal into a digital signal. At the input port of the device you can connect two RCA cables to input in the analogue source signal e. g. from a record player. At the output port you can decide whether to transmit the signal optical via Toslink or via coaxial connection.

Specification
• Connector:
    Input:          2 x RCA red / white
    Output:       1 x Toslink S/PDIF
                        1 x Coaxial S/PDIF
    1 x DC power supply connector 5 V
• Electromagnetic-noise-free transmission
• Supported audio rate 48 KHz
• Dimension (LxWxH):  ca. 63 x 41 x 21 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm

System requirements
• Analogue audio signal over RCA
• Connection cables

Package content
• Converter analogue > digital
• Power supply
• User manual

Package
• White Box
