StarTech USB-A 3.0 -> SATA 22pin M/F adapter 0.5m fekete

StarTech USB-A 3.0 -> SATA 22pin M/F adapter 0.5m fekete
Cikkszám: USB3S2SAT3CB
Ár: 7 840 Ft

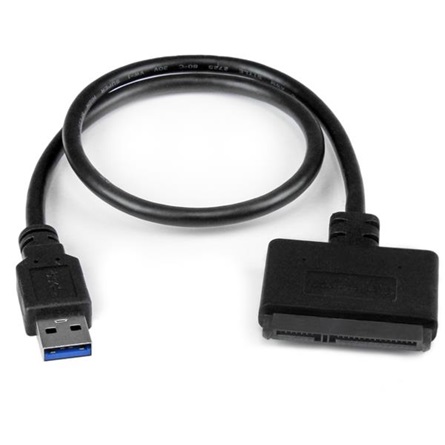

The USB3S2SAT3CB USB 3.0 to SATA adapter cable lets you connect a 2.5" SATA hard drive or solid state drive to your computer through an available USB port -- the easiest way to upgrade the hard drive in your laptop by adding an external SSD via USB 3.0.
The cable supports UASP, allowing for transfer speeds up to 70% faster than conventional USB 3.0, which enables you to utilize the full potential of your SATA III SSD/HDD, when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
This portable adapter features a lightweight design with no external power required, for easy storage in a laptop bag or carrying case. Plus, the cable-style adapter makes it easy to swap between hard drives without having to install your drives into an enclosure. Perfect for easy drive access for data migration, drive cloning and data backup applications.
The USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connection Diagram


Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
UASP Speed Diagram
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
UASP Speed Diagram
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
  • Maximum portability with cable-style adapter, and no external power adapter required
  • Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
Bus Type USB 3.0
Chipset ID ASMedia - ASM1051E
Compatible Drive Types (Type and Rate) SATA
Drive Size 2.5in
Fan(s) No
Interface USB 3.0
Number of Drives 1
Performance
Max Drive Capacity Currently tested with up to 2TB 5900 RPM hard drives
Type and Rate USB 3.0 - 5 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes
Connector(s)
Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB 3.0 A (9 pin; SuperSpeed) Male
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note Cable will work only with 2.5" SATA drives
3.5"/5.25" drives are not supported
Environmental
Humidity 40%-85%RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Product Height 0.4 in [9 mm]
Product Length 19.7 in [500 mm]
Product Weight 1.4 oz [41 g]
Product Width 1.9 in [49 mm]
Packaging Information
Shipping (Package) Weight 2.2 oz [61 g]
What's in the Box
Included in Package 1 - USB 3.0 to SATA 2.5" HDD Adapter Cable
  1 - Instruction Manual

Gyártó StarTech
bemeneti csatlakozó USB-A 3.0
