  3. StarTech PCI-E x1 10/100/1000Mbps hálózati szerver adapter low profile

StarTech PCI-E x1 10/100/1000Mbps hálózati szerver adapter low profile

StarTech PCI-E x1 10/100/1000Mbps hálózati szerver adapter low profile
RJ45: 1db, PCI-E x1: 1db
Cikkszám: ST1000SPEX2
Ár: 16 530 Ft

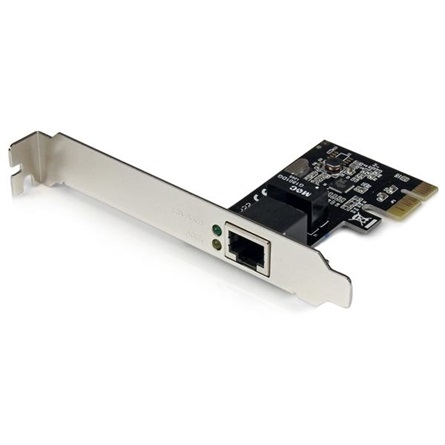

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
  • Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
  • Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Realtek RTL8111E
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface RJ45 (Gigabit Ethernet)
Ports 1
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Data Transfer Rate 1000 Mbps
MTBF 376,212 Hours
Supported Protocols CSMA/CD
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 1 - RJ-45 Female
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server® 2012 R2, 2008 R2, 2003(32/64)
Mac OS® 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Special Notes / Requirements
System and Cable Requirements Available PCI Express expansion card slot
Indicators
LED Indicators 1 - Gigabit Detect (Yellow)
  1 - Link/Activity (Green)
Environmental
Humidity 10% ~ 90% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 100°C (32°F to 212°F)
Physical Characteristics
Product Height 0.7 in [18 mm]
Product Length 2.7 in [67.9 mm]
Product Weight 1.4 oz [40 g]
Product Width 4.7 in [120.3 mm]
Packaging Information
Shipping (Package) Weight 4.2 oz [120 g]
What's in the Box
Included in Package 1 - Gigabit Ethernet PCI Express Card
  1 - Low Profile Bracket
  1 - Driver CD
  1 - Instruction Manual


Gyártó StarTech
átviteli sebesség 1Gb/s
csatlakozás PCIe x1
low profile Van
PCI-E x1 1 db
RJ45 1
