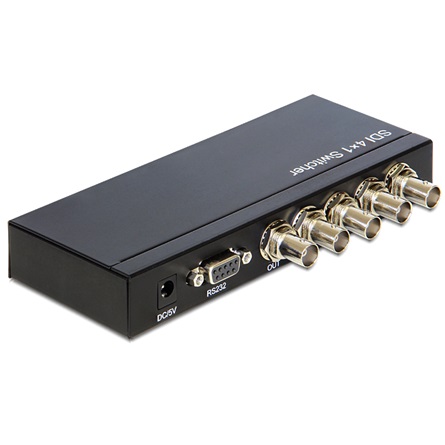

Delock 4 portos 3G-SDI switch

Description
With this Delock SDI switch, you can connect up to four SDI input sources to one SDI output device, such as an HD-SDI monitor. By pressing a button on the device, you can switch from one source to another.

Specification
• Connector:
  Input:  4 x BNC female (3G-SDI)
  Output: 1 x BNC female (3G-SDI)
  1 x DC Power 5 V
• Supported resolution:
   SD 480i, 525i und 625i
   HD 720p 24, 25, 30, 50 and 60 Hz
   HD 1080i 50, 60 Hz
   HD 1080p 24, 25, 30, 50 and 60 Hz
• Configuration and control of the device via RS232 interface
• Robust metal housing
• Power consumption: max. 3 W
• Dimensions (LxWxH): ca. 162 x 82 x 25 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm

Package content
• 3G-SDI Switch
• Power supply

Package
• White Box
