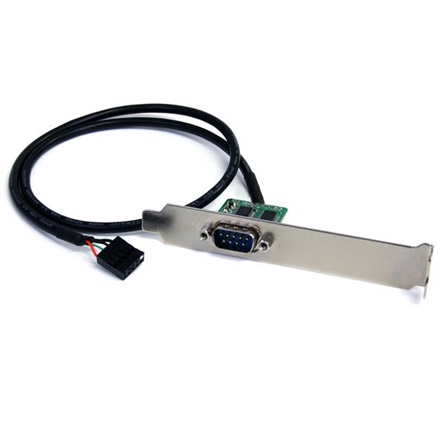

StarTech Pinheader -> Serial RS-232 F/M hátlapi kivezetés FT232RL

StarTech Pinheader -> Serial RS-232 F/M hátlapi kivezetés FT232RL
Cikkszám: ICUSB232INT1
Ár: 21 840 Ft
Bus Type Motherboard Header
Card Type Standard Profile (LP bracket incl.)
Chipset ID FTDI - FT232RL
Interface Serial
Port Style Integrated on Card
Ports 1
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 115.2 Kbps
Parity None, Odd, Even, Space, Mark
Serial Protocol RS-232
Stop Bits 1, 2
Connector(s)
External Ports 1 - DB-9 (9 pin; D-Sub) Male
Internal Ports 1 - IDC (10 pin; Motherboard Header) Female
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+)
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (tested up to 10.11)
Linux 2.4.x / 2.6.x
Environmental
Humidity 5~85% RH
Operating Temperature -10°C to 80°C (14°F to 176°F)
Storage Temperature -20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Cable Length 2 ft [0.6 m]
Product Height 0.5 in [12 mm]
Product Length 1.8 in [45 mm]
Product Weight 1.1 oz [31 g]
Product Width 4.8 in [123 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]
What's in the Box
Included in Package 1 - USB to RS232 Serial Adapter
  1 - Low profile bracket
  1 - Driver CD
  1 - Instruction Manual
Gyártó StarTech
