Delock USB-A 2.0 -> 9db Serial RS-232 nyitott vezeték M/M adatkábel 1m fekete

Garancia: 3 Év Leírás

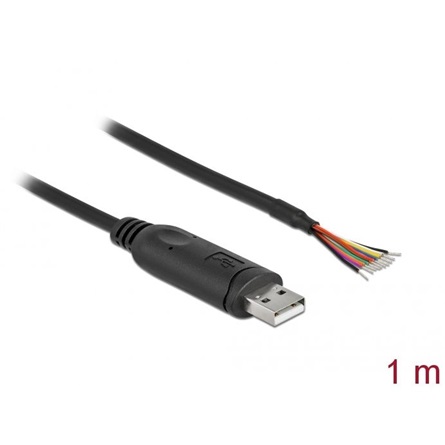

This USB 2.0 Type-A to serial RS-232 adapter cable by Delock is suitable as a connection cable between a device with USB 2.0 and a device with RS-232 port. With the tinned open cable ends, the connection can be made directly to the RS-232 device connector or flexible to various terminal blocks. In addition, it can be used to produce individual adapters and cable assemblies.

Műszaki adatok
? Connectors:
1 x USB Type-A male
1 x Serial RS-232 10 x open wires (tinned)
? Chipset: FTDI FT232R
? Compatible to UHCI / OHCI / EHCI controller
? Databits: 7 or 8
? Stop bits: 1 or 2
? Parity: none, space, even, odd, mark
? Flow control: none, hardware RTS / CTS, software XON / XOFF
? Data transfer rate up to 230.4 Kbps
? Pinout: TxD (red), RxD (braun), RTS (blau), CTS (purple), DTR (orange), DSR (grün),
DCD (black), RI (white), GND (yellow), Shielding (matt black)
? ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
? Cable diameter: ca. 5 mm
? Cable gauge: 26 AWG
? Conductor: stranded copper wire
? Isolation: PVC
? Cable length incl. connectors: ca. 1 m
? Colour: black
? Operating temperature: -10 °C ~ 80 °C


Rendszerkövetelmények
? Mac OS 10.13 or above
? Linux Kernel 2.6 or above
? Windows 8.1/8.1-64/10/10-64
? Windows Server 2012 / Server 2012R2 / Server 2016
? PC or laptop with a free USB Type-A port


A csomag tartalma
? USB Type-A to 1 x serial Adapter


Csomag
? Poly bag
Gyártó: Delock
