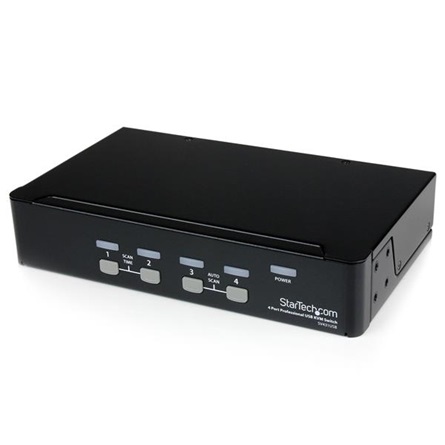

StarTech Professional VGA 4 portos KVM switch

USB2.0 bemenet: 4db, USB2.0 kimenet: 4db, D-Sub bemenet: 4db, D-Sub kimenet: 1db

Cikkszám: SV431USB

Ár: 68 020 Ft

Termék adatlapjának letöltése

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Hardware
Audio	No
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Multi-Monitor	No
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Optional
U Height	1U
Performance
Auto Scan	3, 8, 15 & 30 seconds
DVI Support	No
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Cable Length	16.4 ft [5 m]
Maximum Number of Users	1
MTBF	82,506 Hours
Port Selection Support	Push Button
Connector(s)
Console Interface(s)	1 - VGA (15 pin; High Density D-Sub) Female
	4 - USB A (4 pin) Female
Host Connectors	4 - USB B (4 pin) Female
	4 - VGA (15 pin; High Density D-Sub) Male
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required
Power
Center Tip Polarity	Positive
Input Current	0.4A
Input Voltage	110 ~ 240 AC
Output Current	2A
Output Voltage	5 DC
Plug Type	N
Power Source	Not Included (not required for standard applications)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Height	1.7 in [44 mm]
Product Length	8.7 in [220 mm]
Product Weight	31.8 oz [900 g]
Product Width	5.1 in [130 mm]
Packaging Information
Shipping (Package) Weight	3 lb [1.3 kg]
What's in the Box
Included in Package	1 - 4 Port VGA USB KVM Switch
	4 - Rubber Feet
	1 - Instruction Manual

D-Sub bemenet	4
D-Sub kimenet	1
tömeg	900
Gyártó	StarTech
külső tápegység	Van
portok száma	4
USB2.0 bemenet	4
USB2.0 kimenet	4
magasság	44 mm
mélység	130 mm
szélesség	220 mm
szín	fekete
