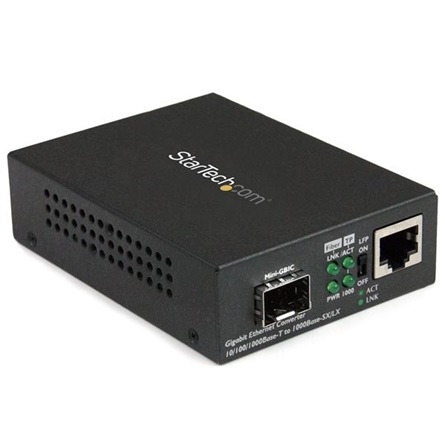

StarTech Gigabit Gigabit Ethernet to SFP Ethernet media konverter

LAN (1Gb/s): 1 port, SFP: 1db

Cikkszám: MCM1110SFP

Ár: 38 470 Ft

Termék adatlapjának letöltése

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
Industry Standards	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3z 1000BASE-SX
	IEEE 802.3z 1000BASE-LX
PoE	No
WDM	No
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Fiber Operating Mode	Full-Duplex
Fiber Type	Multi Mode
	Single Mode
Maximum Data Transfer Rate	1 Gbps
MTBF	> 50,000 hours at 25°C
Connector(s)
Local Unit Connectors	1 - RJ-45 Female
	1 - SFP Slot Female
Special Notes / Requirements
Note	Fiber data transfer speeds and distances are dependent on the SFP transceiver used (sold separately)
Indicators
LED Indicators	1 - Power
	1 - Fiber Port Link/Act
	1 - Copper Port Link/Act
	1 - 1000 Mbps
Power
Center Tip Polarity	Positive
Input Current	1 A
Input Voltage	100 ~ 240 AC
Output Current	2 A
Output Voltage	5 DC
Plug Type	N
Power Consumption	5 W Max
Power Source	AC Adapter Included
Environmental
Humidity	5~95% RH (Non-condensing)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color	Brown
Enclosure Type	Steel
Product Height	1 in [26 mm]
Product Length	3.7 in [95 mm]
Product Weight	6.5 oz [185 g]
Product Width	2.8 in [70 mm]
Packaging Information
Shipping (Package) Weight	17.3 oz [489 g]
What's in the Box
Included in Package	1 - Gigabit Ethernet fiber media converter w/ open SFP slot
	1 - universal power adapter (NA/EU/UK/AU)
