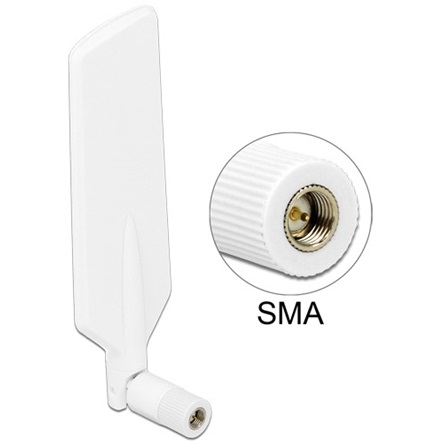

Delock LTE WLAN Dual Band Antenna SMA 1 ~ 4 dBi antenna

Description
This LTE antenna can be installed indoors and can be used  for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN dual band and ZigBee compatible.

Specification
• Connector: SMA plug
• LTE Band: 1 ~ 10; 12 ~ 20; 23; 25
• Frequency range: 698 ~ 791; 824 ~ 960; 1710 ~ 2170; 2400 ~ 2500; 5150 ~ 5875 MHz
• Bluetooth / GSM / UMTS / WLAN Dualband / ZigBee
• Gain: 1 ~ 4 dBi
• Impedance: 50 Ohm
• VSWR: 2.5:1 ~ 5.0:1
• Operating temperature: -10°C ~ 55°C
• Housing: ABS, UV resistant
• Dimensions (LxWxH): ca. 156.16 x 39.78 x 13.50 mm
• Diameter SMA: ca. 13.5 mm

System requirements
• Device with free SMA connector

Package content
• Antenna

Package
• Poly bag
