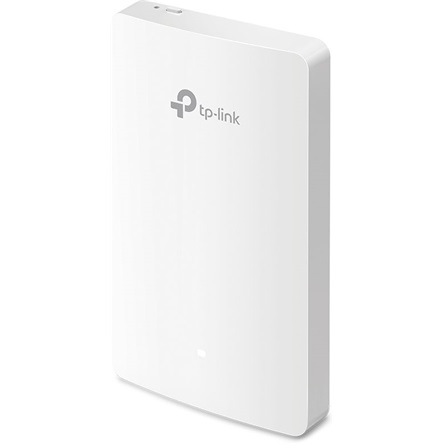

TP-Link EAP235-Wall Omada AC1200 Dual-Band Wi-Fi PoE access point

TP-Link EAP235-Wall Omada AC1200 Dual-Band Wi-Fi PoE access point
1167Mb/s, IEEE 802.11a/b/g/n/ac (Wi-Fi 5), LAN (1Gb/s): 4 port, antennák száma: 2db, 4dBi, fehér
Cikkszám: EAP235-WALL
Ár: 47 450 Ft
Garancia: 5 Év
Interface Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts
24.4 watts with 13w PoE output
Dimensions 5.6 × 3.4 × 0.8 in.
143 × 86 × 20 mm
Antenna 2.4 GHz: 2× 4 dBi
5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band)
Enable/ disable SSID broadcast
Automatic channel assignment
Transmit power control (adjustable in 1 dBm step)
QoS (WMM)
Band steering
Beamforming
Load balance
Rate limit
Scheduled reboot
Wireless scheduled on/off
Wireless Statistics based on SSID, access point, or client
Wireless Security Captive portal authentication
Access control list
Wireless MAC address filtering
Wireless isolation between clients
SSID to VLAN Mapping
LAN port-based VLAN
Rogue AP detection
802.1X EAP support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power ≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/ remote syslog
SSH Yes
Web-based Management HTTP/ HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall
Installation guide
Mounting screw
Environment Operating temperature: 0–40 ? (32–104 ?)
Storage temperature: -40–70 ? (-40–158 ?)
Operating humidity: 10–90% RH non-condensing
Storage humidity: 5–90% RH non-condensing
Dual-Band Van
LAN (1Gb/s) 4
PoE port 2
Wi-Fi átviteli sebesség 1167
Wi-Fi jeltípus IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
Gyártó TP-Link
antenna nyeresége 4
antenna típusa belső
antennák száma 2
PoE Van
WI-FI Van
szín fehér
