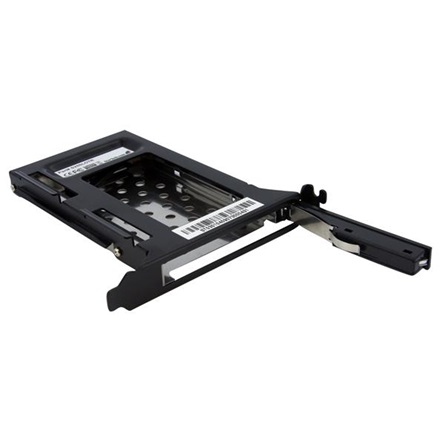

StarTech 2.5" SATA3 mobil rack fekete PC slot

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
* This unique design of the mobile rack enables you to use any available full profile expansion slot to mount a removable 2.5in SATA hard drive.
Hardware | |
---|---|
Compatible Drive Types (Type and Rate) | SATA |
Drive Installation | Removable |
Drive Size | 2.5in |
Fan(s) | No |
Number of Drives | 1 |
Performance | |
Hot Swap Capability | Yes |
Max Drive Capacity | Tested up to 500 GB |
Connector(s) | |
Drive Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors | 1 - LP4 (4 pin; Molex Large Drive Power) Male |
1 - SATA (7 pin; Data) Plug | |
1 - SATA Power (15 pin) Plug | |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Indicators | |
LED Indicators | 1 - Solid - Power On Blinking - Activity |
Environmental | |
Humidity | 80% RH |
Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Storage Temperature | -5°C to 75°C (23°F to 167°F) |
Physical Characteristics | |
Color | Black |
Enclosure Type | Aluminum and Steel |
Max Drive Height | 0.4 in [9.5 mm] |
Product Height | 4.7 in [120 mm] |
Product Length | 5.7 in [145 mm] |
Product Weight | 5.6 oz [158.4 g] |
Product Width | 0.8 in [21 mm] |
Packaging Information | |
Shipping (Package) Weight | 0.3 lb [0.1 kg] |
What's in the Box | |
Included in Package | 1 - Expansion Slot Removable HDD bracket |
1 - 20in SATA cable | |
1 - LP4 SATA breakout cable | |
1 - Hard Drive Protective Film | |
1 - Mounting Screws | |
1 - Instruction Manual |
meghajtó méret | 2,5" |
Gyártó | StarTech |
irány | -> |
