StarTech PCI-E x1 2+2 portos PCI PCI-E x1 külső bővítő rendszer
illesztés: PCIe x1
Cikkszám: PEX2PCIE4L
Ár: 281 000 Ft

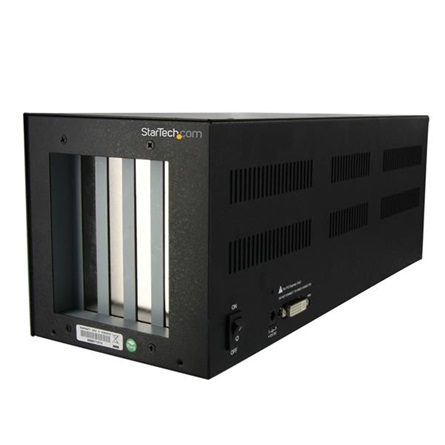

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
- Install additional cards without opening your computer with the provided external expansion card slots
- Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Texas Instruments - XIO200A + XIO3130 |
| Interface | PCI / PCI-X (5 / 3.3V) |
| Port Style | Integrated on Card |
| Performance | |
|---|---|
| Maximum Data Transfer Rate | 250 MBps |
| MTBF | 135,012 Hours |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 2 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Slot Female |
| 2 - PCI Express x1 Slot Female | |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | The Maximum power consumption of the adapter cards used in this expansion box is 36W. Cards might not function if their total power exceeds the maximum power consumption |
| This product has a compatibility issue with Silicon Image SATA Controllers on an AMD platform | |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115 ~ 230 AC |
| Output Current | 3A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 5 to 95% RH |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 75°C (-40° to 167°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 5.6 in [143 mm] |
| Product Length | 15 in [382 mm] |
| Product Weight | 4.4 lb [2 kg] |
| Product Width | 5.4 in [137 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 4.6 lb [2.1 kg] |
| What's in the Box | |
| Included in Package | 1 - PCI Expansion box |
| 1 - PCI Express Card | |
| 1 - 3 ft. DVI-D Cable | |
| 1 - Low Profile Bracket | |
| 1 - Screw Kit | |
| 3 - Power Cord (NA/UK/EU) | |
| 1 - Power Adapter | |
| 1 - Software CD | |
| 1 - Instruction Manual | |
| Gyártó | StarTech |
