StarTech 2 portos HDMI switch automata, Matrix

Cikkszám: VS222HDQ

Ár: 72 150 Ft

Termék adatlapjának letöltése

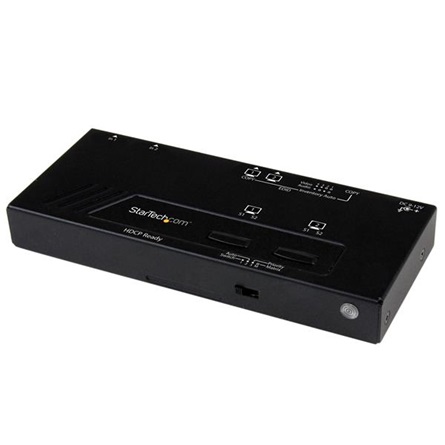

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.

Seamless Signal Selection

Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

Effortless Control

Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.

Versatile Switching Options

Enjoy hassle-free operation with four different switching modes:

Automatic port selection: Enables your most recently activated video source to be displayed automatically.

Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.

Matrix port selection: Independently switch two displays between two video sources.

Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.

The StarTech.com Advantage

Save your time, by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
Hassle-free operation, with four video selection modes including automatic, priority, matrix and manual
Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss

Performance
Audio	Yes
Cabling	HDMI
Output Signal	HDMI
Ports	2
Rack-Mountable	Yes
Audio Specifications	7.1 surround sound
Max Distance	10 m / 33 ft
Maximum Digital Resolutions	1920x1200 / 1080p
Supported Resolutions	1920x1200 1920x1080 (1080p) 1280x720 (720p)
Wide Screen Supported	Yes
Connector(s)
Connector A	2 - HDMI (19 pin) Female
Connector B	2 - HDMI (19 pin) Female
Indicators
LED Indicators	1 - Display #1 - source #1 activated
	1 - Display #1 - source #2 activated
	1 - Display #2 - source #1 activated
	1 - Display #2 - source #2 activated
Power
Input Current	0.6 A
Input Voltage	100 ~ 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Source	AC Adapter Included
Environmental
Humidity	0%~80%
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Enclosure Type	Aluminum and Plastic
Product Height	0.8 in [20 mm]
Product Length	6.2 in [157 mm]
Product Weight	10.2 oz [290 g]
Product Width	2.6 in [65 mm]
Packaging Information
Shipping (Package) Weight	19.2 oz [545 g]
What's in the Box
Included in Package	1 - HDMI Matrix Switch
	1 - Remote control
	1 - Universal Power Adapter (US/UK/EU)
	1 - Instruction manual
	1 - Foot pad set
	1 - Mounting kit

tömeg	290
Gyártó	StarTech
cikknév kiegészítés	automata, Matrix
HDMI bemenet	2
HDMI kimenet	2
külső tápegység	Van
portok száma	2
magasság	20 mm
mélység	65 mm
szélesség	157 mm
szín	fekete
