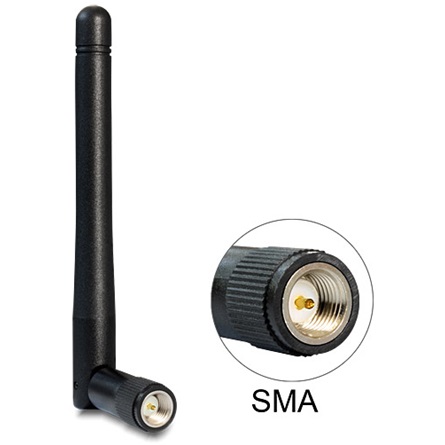

Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA 2 dBi omnidirectional antenna

Description
This WLAN antenna can be connected to an SMA port, in order to receive or send signals.

Specification
• Connector: SMA plug
• With flexible joint, rotatable
• Frequency range: 2.4000 ~ 2.4835 GHz,
                                   5.1500 ~ 5.7250 GHz
• Gain:                      1.5 dBi @ 2.5 GHz
                                  2.1 dBi @ 5.7 GHz
• Impedance: 50 Ohm
• VSWR: 2.0 max.
• Operating temperature: -20 °C ~ 65 °C
• Length with flexible joint ca. 108 mm, without flexible joint ca. 82.5 mm
• Diameter: 7.8 mm (Ø peak)
                   10.0 mm (Ø SMA)

System requirements
• Device with a free SMA connector

Package content
• Antenna

Package
• Poly bag
