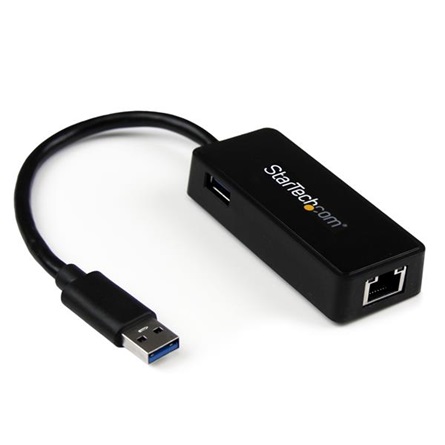

StarTech USB3.0 10/100/1000Mbps hálózati adapter fekete

RJ45: 1db, USB-A 3.2 Gen1×1: 1db

Cikkszám: USB31000SPTB

Ár: 25 380 Ft

Termék adatlapjának letöltése

The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your laptop or Ultrabook™ computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. The network adapter is the ideal laptop accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).

The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
Bus Type	USB 3.0
Chipset ID	ASIX - AX88179 VIA - VL811
Industry Standards	IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Interface	RJ45 (Gigabit Ethernet)
Ports	1
USB Pass-Through	Yes
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	4K max.
Max Distance	100 m / 330 ft
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet - Full-Duplex)
Type and Rate	USB 3.0 - 5 Gbit/s
Connector(s)
Connector Type(s)	1 - RJ-45 Female
	1 - USB Type-A (9 pin) USB 3.0 Female
	1 - USB Type-A (9 pin) USB 3.0 Male
Software
OS Compatibility	Windows® 10 (32/64), 8.1 (32/64), 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64) Windows® Server 2012, 2008 R2, 2003(32/64) Mac OS® 10.6 - 10.11 - VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 - 3.17.0 Chrome OS
Special Notes / Requirements
System and Cable Requirements	Available USB Port
Indicators
LED Indicators	1 - 10/100 Link/Activity (Green)
	1 - Gigabit Link/Activity (Amber)
Power
Power Source	USB-Powered
Environmental
Humidity	5~85% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length	6.1 in [155 mm]
Color	Black
Enclosure Type	Plastic
Form Factor	Attached Cable
Product Height	0.7 in [17 mm]
Product Length	5 in [126 mm]
Product Weight	1.5 oz [42 g]
Product Width	1.4 in [35 mm]
Packaging Information
Shipping (Package) Weight	4.5 oz [127 g]
What's in the Box
Included in Package	1 - USB 3.0 Network Adapter
	1 - Driver CD
	1 - Instruction Manual

USB-A 3.2 Gen1×1	1
USB3.2 Gen1×1 A	1
Gyártó	StarTech
átviteli sebesség	1Gb/s
cikknév kiegészítés	fekete
csatlakozás	USB-A
RJ45	1
magasság	17 mm
mélység	126 mm
szélesség	35 mm
