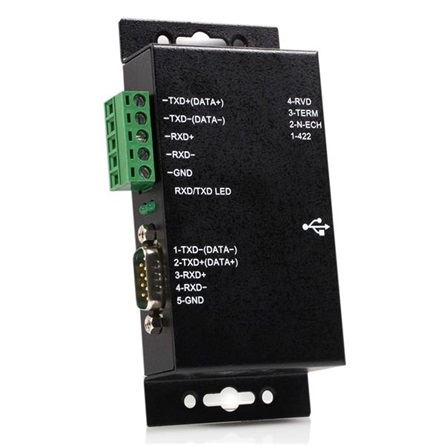

StarTech USB-A 2.0 -> Terminal block 5pin Serial RS422/RS485 M/F adapter fekete w/ Isolation

Cikkszám: ICUSB422IS
Ár: 88 740 Ft
Bus Type | USB 2.0 |
Chipset ID | FTDI - FT232RL |
Interface | Serial |
Port Style | External Hub |
Ports | 1 |
Performance | |
---|---|
Data Bits | 7, 8 |
FIFO | 256 Bytes |
Isolation | 2500 Vrms |
Max Baud Rate | 921.6 Kbps |
Parity | Even, Odd, Mark, Space, None |
Serial Protocol | RS-422/485 |
Stop Bits | 1, 2 |
Surge Protection | 500W |
Connector(s) | |
Connector Type(s) | 1 - USB B (4 pin) Female |
External Ports | 1 - DB-9 (9 pin; D-Sub) Male |
1 - Terminal Block (5 Wire) | |
Software | |
OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.11) Linux 2.4.x / 2.6.x |
Power | |
Input Current | 200mA |
Input Voltage | 5 DC |
Power Source | USB-Powered |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
Physical Characteristics | |
Cable Length | 6 ft [1.8 m] |
Color | Black |
Enclosure Type | Steel |
Product Height | 0.9 in [23 mm] |
Product Length | 4.6 in [118 mm] |
Product Weight | 6.4 oz [180 g] |
Product Width | 2.5 in [64 mm] |
Packaging Information | |
Shipping (Package) Weight | 0.9 lb [0.4 kg] |
What's in the Box | |
Included in Package | 1 - USB to RS422/485 Converter |
1 - 6ft USB A to B Cable | |
1 - Driver CD | |
1 - User Manual |
Gyártó | StarTech |
bemeneti csatlakozó | USB-A 2.0 |
