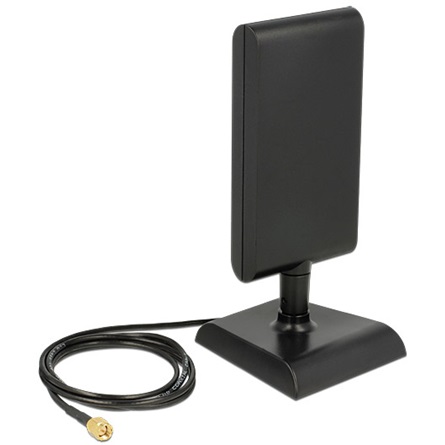

Delock LTE antenna

This LTE antenna can be installed indoors and can be used  for reception of different LTE bands. She is completely  WLAN 2.4 GHz, UMTS, GSM  and ZigBee compatible.

Specification
• Connector: SMA plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• Frequency range: 698-787 / 791-960 / 1710-2170 /  2500-2700 Mhz
• GSM/UMTS
• ZigBee 868~870 MHz, 902~928 MHz, 2405~2480 MHz
• Gain: 2 ~ 4 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1 ~ 4.0:1 max.
• Cable type: coax ULA 100
• Cable attenuation: 1.40 dB @ 2.500 GHz
                                 2.30 dB @ 5.875 GHz
• Cable length: ca. 1 m
• Cable colour: black
• Operating temperature: -10°C ~ 55°C
• Housing: ABS UV resistant
• Dimensions antenna (LxWxH): ca. 162 x 66 x 18 mm
• Dimensions stand (LxWxH): ca. 80 x 77 x 15 mm

System requirements
• Device with free SMA connector

Package content
• LTE antenna with stand

Package
• Box
