Delock 2 portos BNC switch manuális

Description

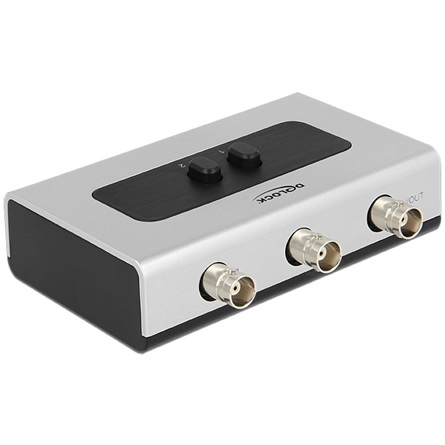

This BNC switch by Delock is a manually bidirectional switch for connecting different devices with BNC port. This switch offers two different applications.

1. You can connect two computers with BNC port to one monitor, TV with BNC input port. By using the button you can select which device should display the signal.
2. You can connect one device with BNC port to two displays and select the monitor which should display the signal by using the button. (Simultaneous output to multiple screens is not possible)

Specification
• Connector:
  Function 1
    Input: 2 x BNC female
    Output: 1 x BNC female
  Function 2
    Input: 1 x BNC female
    Output: 2 x BNC female
• 2 mechanical buttons
• Impedance: 75 Ohm
• Plastic housing
• No external power supply needed
• Dimensions (LxWxH): ca. 112 x 68 x 29 mm (without button)
• Colour: grey / black

System requirements
• A free BNC male port
• BNC connection cables

Package content
• Switch bidirectional
• User manual

Package
• Retail Box
