Delock MHF/U.FL-LP-068 TWIN antenna

Delock MHF/U.FL-LP-068 TWIN antenna
1db, 5dBi, antenna, WLAN eszközhöz
Cikkszám: 88983
Ár: 7 010 Ft

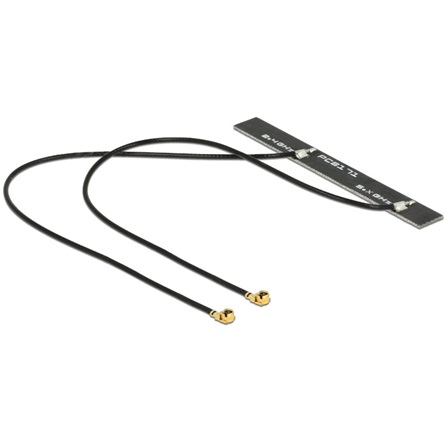

This twin WLAN antenna you can integrate into your devices with two MHF / U.FL compatible connections to receive and send signals. These are two separate antennas with common ground. One is responsible for 2.4Ghz and the other is responsible for 5.xGHz.

Specification
• PCB twin WLAN antenna internal
• Connectors: 2x miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
• Cable length: 2x 150 mm
• Cable diameter: 1.13 mm
• Cable type: coax
• Frequency range: 2400 ~ 2500 MHz
                                5150 ~ 5820 MHz
• Gain: 5 dBi
• Operating temperature: -10 °C ~ 55 °C
• Dimensions (LxWxH): 61.60 x 7.00 x 1.60 mm

System requirements
• A device with free MHF (I-PEX), U.FL (Hirose) compatible connector

Package content
• PCB antenna

Package
• Poly bag
