Delock mSATA IO vezérlő

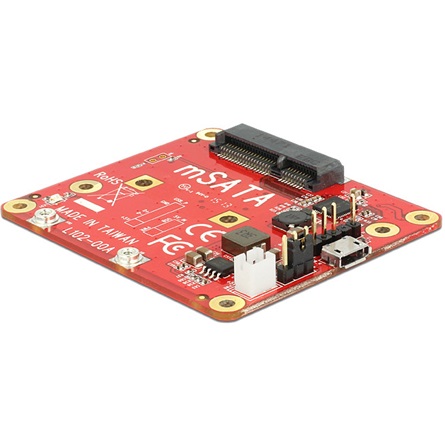

This converter by Delock enables you to connect you mSATA module via the Micro USB port or the USB pin header connector to your Raspberry Pi.

Specification
• Connector:
  1 x USB 2.0 type Micro-B female
  1 x 5 pin USB 2.0 pin header (4 pins connected)
  1 x 2 pin power connector
  1 x mSATA 6 Gb/s slot (full size)
• Chipset: Renesas D720231A
• Supports ATA/ATAPI Packet command set and LBA 48 addressing mode
• Compliant with OHCI 1.0a and EHCI 0.95
• Jumper for setting the power supply via USB or 2 pin power connector
• LED indicator for activity
• Dimensions (LxWxH): ca. 65 x 56 x 12 mm
• OS independent, no driver installation necessary

System requirements
• One free USB port
• USB connection cables

Package content
• Converter
• 2 x screw for mSATA module
• 4 x screw
• 4 x nut
• 4 x standoff

Package
• White Box
