Delock PCI-E x1 - 2 portos SATA3 USB3.0 IO vezérlő

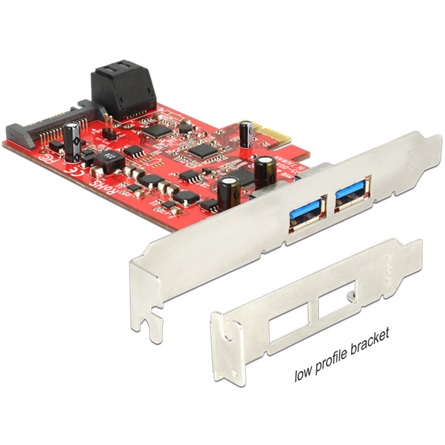

The Delock PCI Express card expands your PC by two external USB 3.0 ports and two internal SATA ports. You can connect devices like e.g. docking station, card reader, hard drives, DVD-drives etc. to the card.

Specification
• Connector:
  external:
  2 x USB 3.0 type A female
  internal:
  2 x SATA 6 Gb/s 7 pin female
  1 x SATA 15 pin power connector
  1 x PCI Express x1, V2.0
• Chipset: Asmedia
• Data transfer rate:
  USB 3.0 up to 5 Gb/s
  SATA up to 6 Gb/s
• Supports xHCI specifications V1.0
• Power supply via PCI Express interface or via SATA power connector
• Pin header for LED to indicate the SATA connection
• Supports Native Command Queuing (NCQ)
• Supports SATA Hot Plug

System requirements
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 3.7
• PC with one free PCI Express slot
• Optional: power supply with a free SATA power connector

Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual

Package
• White Box
