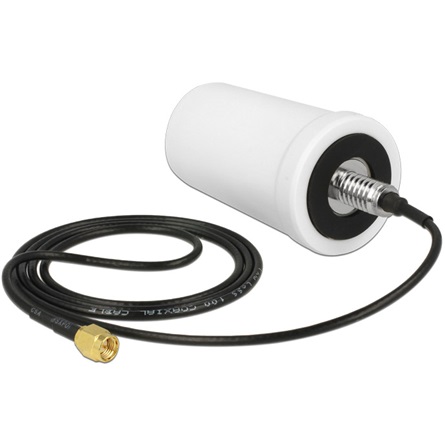

Delock kültéri GSM/UMTS antenna

This GSM/UMTS antenna can be connected to your device with SMA interface, in order to send and receive signals.

Specification
• GSM/UMTS antenna external
• Screw mounting 13 mm central hole
• SMA plug
• Frequency range:    824 ~ 960 MHz,
                                  1.710 ~ 2.170 GHz
• Gain: 0.7dBi@824 ~ 960 MHz
            1.6dBi@1.710 ~ 2.170 GHz
• VSWR: 4.0:1@824 ~ 960 MHz max.
                2.5:1@1.710 ~ 2.170 GHz max.
• Cable length: 1 m
• Cable type: ULA 100 Coax
• Cable attenuation: 1.40 dB@2.500 GHz
• Cable colour: black
• Operating temperature: -10°C ~ 50°C
• Protection class: IP67
• Length: 77 mm
• Diameter: 45 mm max.

System requirements
• Device with RP-SMA jack

Package content
• WLAN antenna
• Screw nut

Package
• Poly bag
