Delock PoE+ AQC107 10Gb/s PCIe x4 RJ45 hálózati adapter

Garancia: 3 Év Leírás

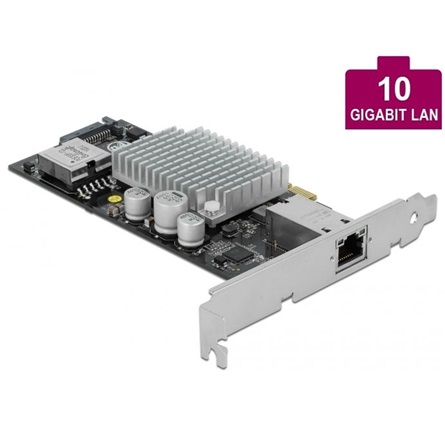

This PCI Express card by IOI offers one network port with a data transfer rate up to 10 Gbps. The RJ45 port supports Power over Ethernet according to IEEE 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.

Multi-Gigabit
The PCIe card supports 10GBase-T according to the standard IEEE 802.3an, 5G and 2.5G Ethernet, as well as 1000BASE-T.



Műszaki adatok
? IOI item number: GE10P-PCIE4XG301
? Connector:
external:
1 x 10 Gigabit LAN RJ45 jack with screw nuts
internal:
1 x SATA 15 pin power connector
1 x PCI Express x4, V3.0
? Chipset: Aquantia AQC107
? Data transfer rate:
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
? Supports Full Duplex flow control (IEEE 802.3x)
? Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
? Supports IEEE 802.1P Layer 2 Priority Encoding
? Supports IEEE 802.1Q VLAN tagging
? Supports 16k Jumbo frames
? Supports IEEE 802.3at Power Sourcing Equipment (PSE)
? Power delivery: max. 30 W total
? PoE power input from PCIe or SATA 15 pin power connector


Rendszerkövetelmények
? Linux Kernel 3.12 or above
? Windows 7/7-64/8.1/8.1-64/10/10-64
? PC with one free PCI Express x4 / x8 / x16 / x32 slot


A csomag tartalma
? PCI Express card
? Driver CD
? User manual


Csomag
? Doboz
Gyártó: Delock
