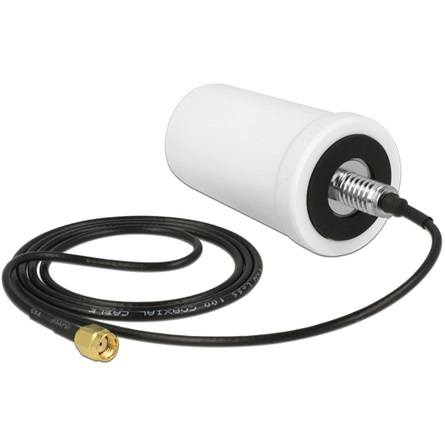

Delock WLAN antenna

This wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.

Specification
• WLAN antenna external
• Screw mounting 13 mm central hole
• RP-SMA plug
• Frequency range:    2.400 ~ 2.500 GHz,
                                  4.900 ~ 5.875 GHz
• Gain: 1.4 dBi @ 2.500GHz
            3.0 dBi @ 5.825GHz
• VSWR: 2.0 : 1 ~ 2.5 : 1 max.
• Cable length: 1 m
• Cable type: ULA 100 Coax
• Cable attenuation: 1.40 dB@2.500 GHz
                                 2.30 dB@5.875 GHz
• Operating temperature: -10°C ~ 50°C
• Protection class: IP67
• Length: 77 mm
• Diameter: 45 mm max.

System requirements
• Device with RP-SMA jack

Package content
• WLAN antenna
• Screw nut

Package
• Poly bag
