StarTech PCI-E x1 3+1 portos USB2.0 IO vezérlő

StarTech PCI-E x1 3+1 portos USB2.0 IO vezérlő
illesztés: PCIe x1, USB2.0: 4db, PCI-E x1: 1db
Cikkszám: PEXUSB4DP
Ár: 27 930 Ft

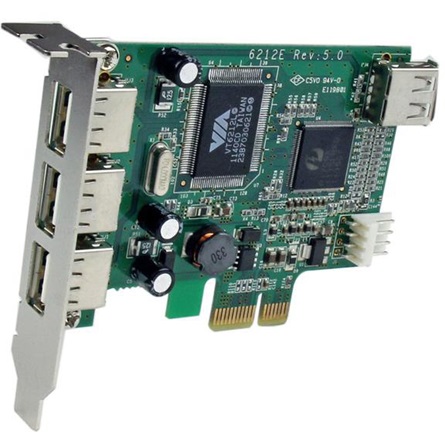

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.

Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.

Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage
  • Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
  • Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Bus Type PCI Express
Card Type Low Profile (SP bracket incl.)
Chipset ID VIA - VT6212
Industry Standards PCI Express One Lane 2.5Gb/s
Interface USB 2.0
Ports 4
Performance
Type and Rate USB 2.0 - 480 Mbit/s
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 3 - USB A (4 pin) Female
Internal Ports 1 - SP4 (4 pin; Small Drive Power) Male
  1 - USB A (4 pin) Female
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (tested up to 10.10)
Linux
Special Notes / Requirements
System and Cable Requirements PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity 80% RH
Operating Temperature -0°C to 75°C (32°F to 167°F)
Storage Temperature -40°C to 125°C (-40°F to 257°F)
Physical Characteristics
Product Height 0.8 in [20 mm]
Product Length 3.5 in [90 mm]
Product Weight 1.6 oz [46 g]
Product Width 3.1 in [80 mm]
Packaging Information
Shipping (Package) Weight 0.4 lb [0.2 kg]
What's in the Box
Included in Package 1 - PCI Express USB 2.0 Card
  1 - Full Profile Bracket
  1 - Driver CD
  1 - Instruction Manual
