StarTech Hard Drive Duplicator 2.5/3.5" SATA USB3.0 eSATA dokkoló fast-speed duplication

StarTech Hard Drive Duplicator 2.5/3.5" SATA USB3.0 eSATA dokkoló fast-speed duplication
beépíthető meghajtók száma: 2db, USB3.0, külső tápegység
Cikkszám: SDOCK2U33RE
Ár: 63 730 Ft

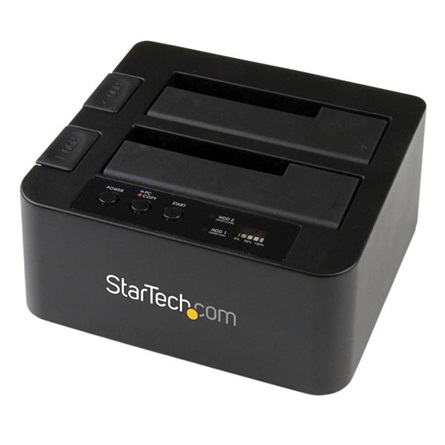

The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.

Versatile Features

The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.

Fast Performance

With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.

Hassle-free Operation

With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation.  The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll  know exactly when it's time to start your next operation.
For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
UASP Speed Diagram
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
UASP Speed Diagram
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
  • Create exact duplicates of your hard drives without having to connect to a computer
  • Maximize performance, with file transfer speeds up to 6Gbps using eSATA or 5 Gbps using USB 3.0 with UASP
  • Versatile connectivity options, through either USB or eSATA
Hardware
Chipset ID JMicron - JM562
Compatible Drive Types (Type and Rate) SATA
Drive Installation Removable
Drive Size 2.5in & 3.5in
Interface USB 3.0 & eSATA
Number of Drives 2
Performance
Max Drive Capacity Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
RAID No
Type and Rate USB 3.0 - 5 Gbit/s
  SATA III (6 Gbps)
UASP Support Yes
Connector(s)
Drive Connectors 2 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB Type-B (9 pin) USB 3.0 Female
  1 - eSATA (7 pin; Data) Female
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 2 - Drive Status
  1 - Power Indicator
  1 - Mode Indicator
  1 - Progress Indicator
Power
Input Current 1.3 A
Input Voltage 100 ~ 240 AC
Output Current 3000 mA
Output Voltage 12 DC
Power Source AC Adapter Included
Environmental
Humidity 20%RH ~ 80%RH
Operating Temperature 5°C - 35°C (41°C to 95°C)
Storage Temperature -20°C - 50°C (-4°C to 122°C)
Physical Characteristics
Color Black
Product Height 2.8 in [70 mm]
Product Length 5.8 in [147 mm]
Product Weight 17.6 oz [500 g]
Product Width 5.2 in [132 mm]
Packaging Information
Shipping (Package) Weight 36 oz [1020 g]
What's in the Box
Included in Package 1 - SATA HDD Duplicator Dock
  1 - USB 3.0 Cable
  1 - eSATA cable
  1 - Universal Power Adapter (NA/UK/EU) or AU in Australia
  1 - Instruction Manual

Gyártó StarTech
