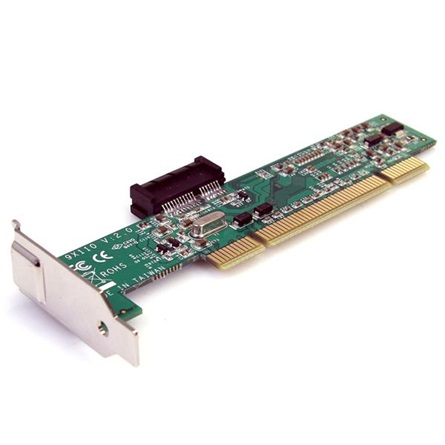

StarTech PCI PCI-E x16 Riser card

illesztés: PCI

Cikkszám: PCI1PEX1

Ár: 29 970 Ft

Termék adatlapjának letöltése

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

The StarTech.com Advantage

The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Connector(s)
Bus Type	PCI / PCI-X (5 / 3.3V)
Card Type	Standard Profile
Chipset ID	Pericom - PI7C9X111SL
Interface	PCI Express
Ports	1
Connector Type(s)	1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male
Internal Ports	1 - PCI Express x1 Slot Female
Software
OS Compatibility	OS Independent; No additional drivers or software required
Environmental
Humidity	0~95% RH
Operating Temperature	0°C to 85°C(32°F to 185°F)
Storage Temperature	-10°C to 95°C(14°F to 203°F)
Physical Characteristics
Product Height	0.8 in [20 mm]
Product Length	5.3 in [135 mm]
Product Weight	1 oz [27 g]
Product Width	2.4 in [60 mm]
Packaging Information
Shipping (Package) Weight	4.2 oz [120 g]
What's in the Box
Included in Package	1 - PCI to PCIe Card
	1 - Spare Full Profile Bracket
	1 - Instruction Manual
