StarTech Serial pinheader -> Serial RS-232 F/M hátlapi kivezetés 0.4m

StarTech Serial pinheader -> Serial RS-232 F/M hátlapi kivezetés 0.4m
Cikkszám: PLATE9M16LP
Ár: 4 820 Ft

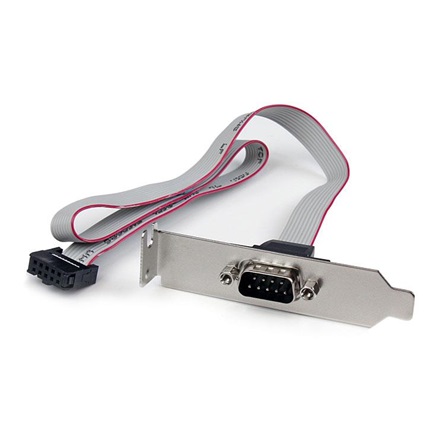

he PLATE9M16LP (16 inch/ 0.4 m) Low Profile Serial Plate adds a DB9 serial port to the rear panel of a small form factor/low profile computer, connecting to an IDC10 header connector on the motherboard.

Constructed of high quality components, this durable low profile DB9 bracket is backed by StarTech.com’s lifetime warranty.

Please refer to this product's Technical Specifications to ensure compatibility with your motherboard.

Warranty Lifetime
Connector(s)
Connector A 1 - IDC (10 pin; Motherboard Header) Female
Connector B 1 - DB-9 (9 pin; D-Sub) Male
Special Notes / Requirements
Note Conforms to Apex10-Everex-Intel Specification, please refer to wiring diagram manual on the Support tab
Physical Characteristics
Cable Length 16 in [406.4 mm]
Color Gray
Product Height 3.1 in [80 mm]
Product Length 16.2 in [412 mm]
Product Weight 0.8 oz [24 g]
Product Width 0.7 in [18.5 mm]
Wire Gauge 28 AWG
Packaging Information
Package Quantity 1
Shipping (Package) Weight 0.1 lb [0 kg]
What's in the Box
Included in Package 1 - 16 inch / 0.4 m Low Profile Port Serial Plate


Gyártó StarTech
