  3. StarTech USB-A 2.0 -> Terminal block 5pin Serial RS-232/RS422/RS485 M/F adapter

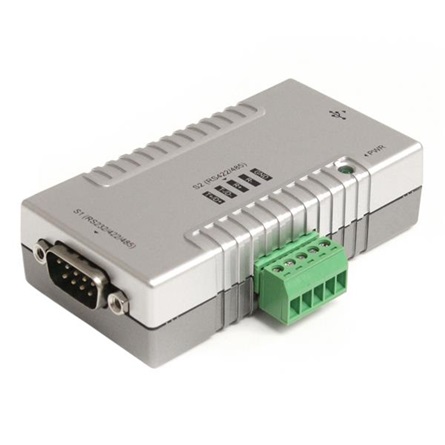

StarTech USB-A 2.0 -> Terminal block 5pin Serial RS-232/RS422/RS485 M/F adapter

StarTech USB-A 2.0 -> Terminal block 5pin Serial RS-232/RS422/RS485 M/F adapter
Cikkszám: ICUSB2324852
Ár: 71 650 Ft
Bus Type USB 2.0
Chipset ID FTDI - FT2232H
Interface Serial
Port Style External Hub
Ports 2
Performance
Data Bits 7, 8
FIFO 128 Bytes
Flow Control Xon/Xoff, Hardware, and None
Max Baud Rate 921.6 Kbps
Parity Odd, Even, Mark, Space, and None
Serial Protocol RS-232/422/485
Stop Bits 1, 2
Connector(s)
Connector Type(s) 1 - USB A (4 pin) Male
External Ports 1 - DB-9 (9 pin; D-Sub) Male
  1 - Terminal Block (5 Wire)
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, CE 6.0/5.0/4.2, 2000, PocketPC 2003, Mobile 6/5, ME, 98SE
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (tested up to 10.11), 9.8
Linux 2.4.x and later
Indicators
LED Indicators 1 - Red - Power LED
Power
Center Tip Polarity Positive
Output Current 0.385A
Output Voltage 5 DC
Plug Type B
Power Source Not Included (not required for standard applications)
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color Gray
Enclosure Type Plastic
Product Height 0.9 in [23.2 mm]
Product Length 3.2 in [82.3 mm]
Product Weight 10.6 oz [300 g]
Product Width 1.7 in [44.2 mm]
Packaging Information
Shipping (Package) Weight 10.9 oz [310 g]
What's in the Box
Included in Package 1 - Wall mounting bracket
  1 - USB to RS232/RS422/485 Adapter
  1 - USB A to B Cable
  1 - Driver CD
  1 - Installation Guide
Gyártó StarTech
bemeneti csatlakozó USB-A 2.0
